INTRODUCTION

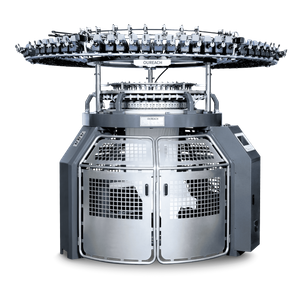

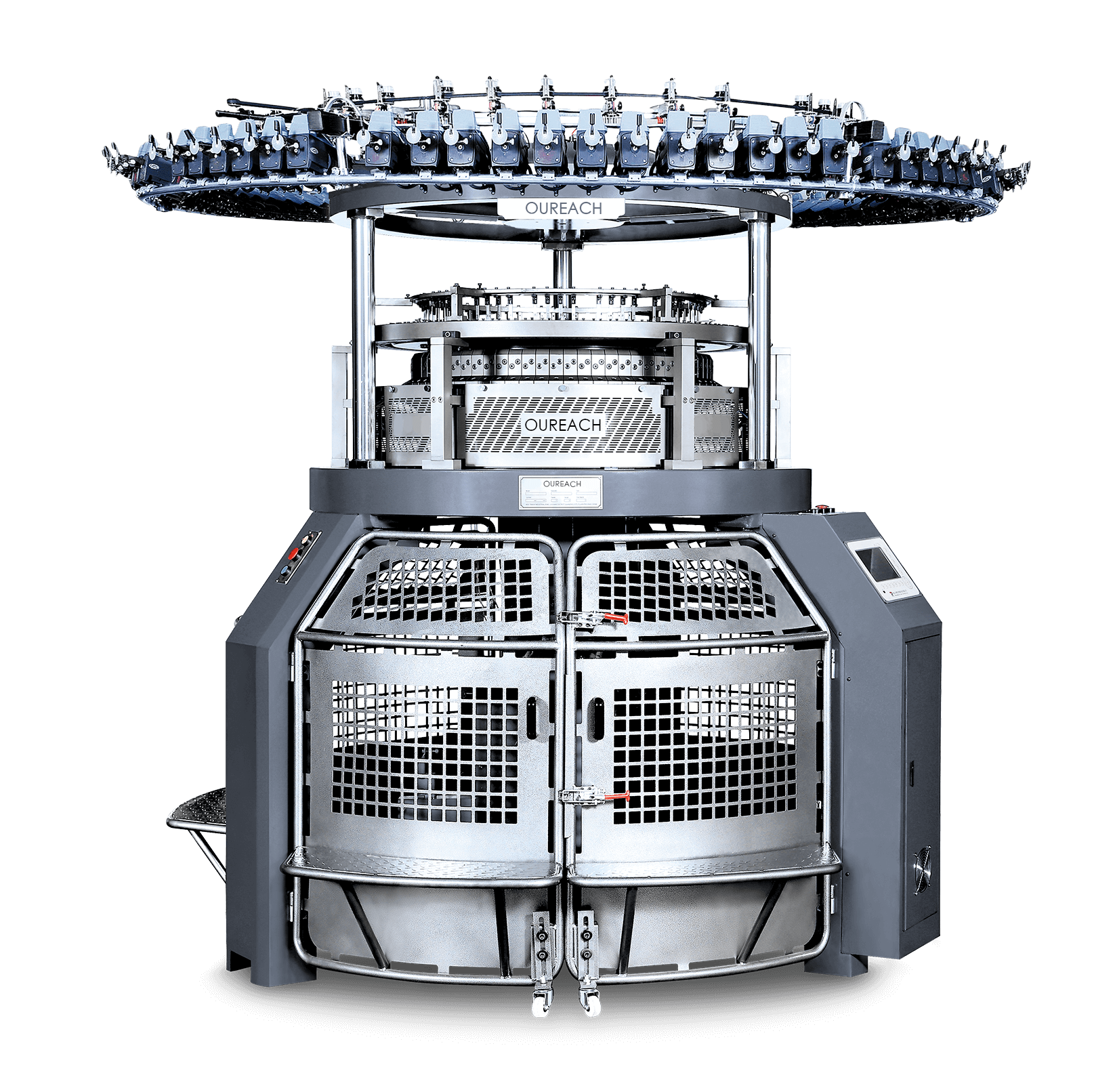

Multi-color Computerized Terry Jacquard Circular Knitting Machine
Mechanical design of multi-color jacquard system for terry fabric. | |
More pure grounding color with no mottled stain. | |
Offer different length loop sinker as options. | |
High density fabric, fluffy touching feeling and colorful appearance. |
STANDARD SPECIFICATIONS
Model | Diameter | Gauge | Feeder | Loop sinker optional |
OE-MTJ | 26”-52” | 16G-20G | 64F-126F | 1.0mm-2.0mm |
………………………………………………………………………………………………………………………………………………………
• Cylinder diameter, needles per inch, number of feeders above are as a guidance
Customized size also acceptable
……………………………………………………………………………………………………………………………………………………….
• Cylinder import Japan steel NO.S45CL
Cylinder part of this model has 4 cam tracks
……………………………………………………………………………………………………………………………………………………….
• Taiwan TECO brand motor with Taiwan Delta brand or Japan Toshiba brand inverter control unit as options
……………………………………………………………………………………………………………………………………………………….
• Pulsonic 5.2 pressure oiler or Uniwave misty oiler or Like brand misty oiler as options
………………………………………………………………………………………………………………………………………………………
• Germany Memminger brand feeders or Italy LGL brand or China SUN brand as options
……………………………………………………………………………………………………………………………………………………...
• Fulong brand Aluminum Tube creel
……………………………………………………………………………………………………………………………………………………....
• Speed of machine depend on yarn used, knitting condition, gauge etc. so please select proper speed for machine base on different yarn and knitting condition. We give a guide speed as normal as following:
GUIDE SPEED
DIAMETER | GAUGE | FEEDER | RPM |
30” | 16G | 72F | 12.5rpm |
PRODUCTION DETAIL
DIAMETER | GAUGE | FEEDER | RAW MATERIAL | PRODUCTION/ 24 hours |
30” | 16G | 72F | 300D ground yarn+150D four individual color yarns | 120m/24hours |
PACKAGING & SHIP
OE-MTJ | 34” DIAMETER |
N.W. APPROX | 2.0T |
G.W APPROX | 2.5T |
