INTRODUCTION

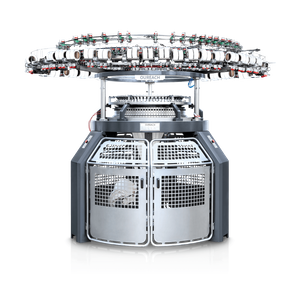

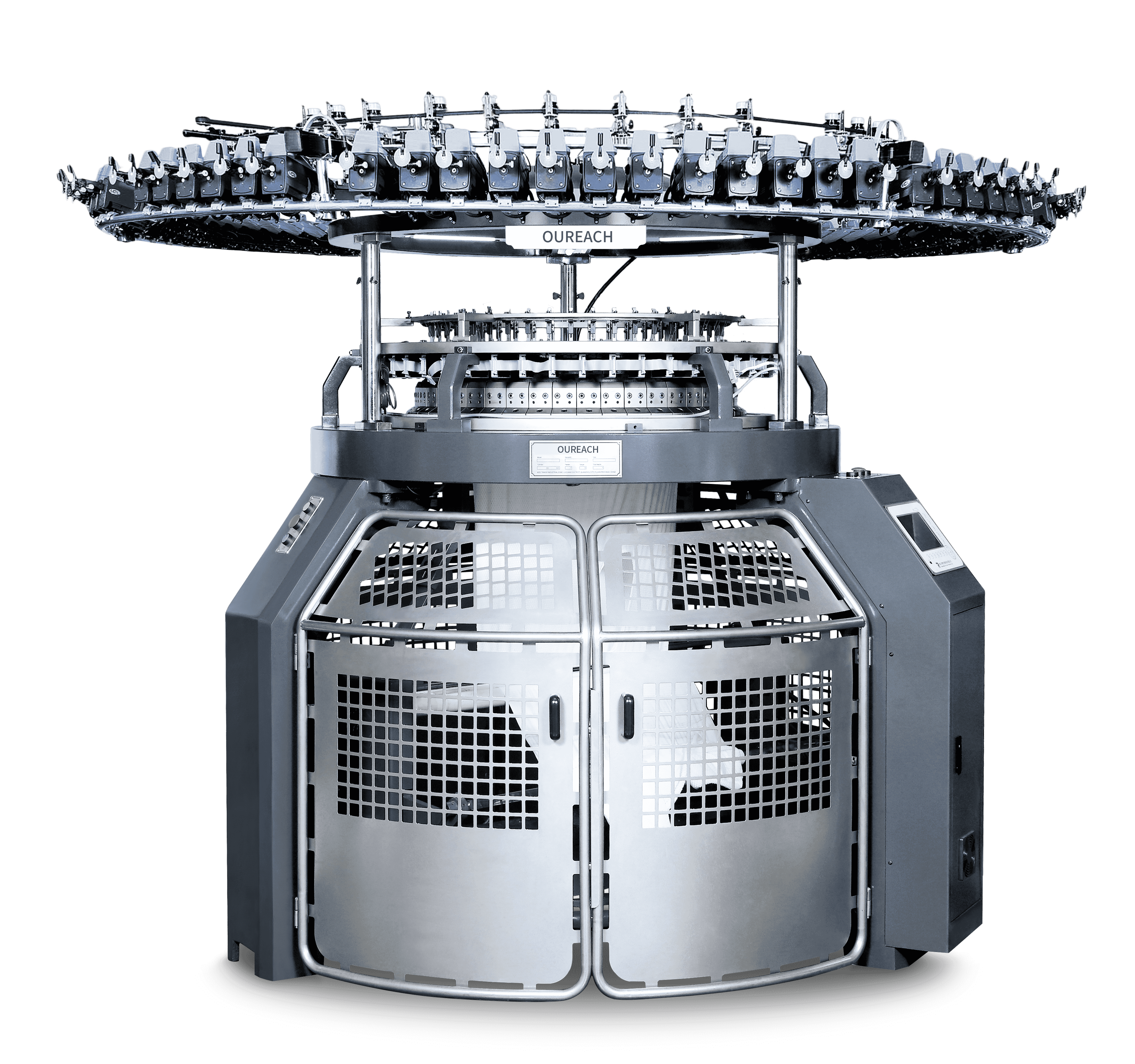

Computerized terry jacquard circular knitting machine
Reverse(polar) terry machine with jacquard system. | |
Velour (ordinary) terry machine with jacquard system. | |
Simple and convenient for operator. | |
Multi-language computerize panel as optional. |
STANDARD SPECIFICATIONS
Model | Diameter | Gauge | Feeder | Application |
OE-TCJ | 30”-38” | 12G-24G | 36F/54F | Bottoming shirts, pajamas, bath towels, towels, sweater linings, etc. |
………………………………………………………………………………………………………………………………………………………
• Cylinder diameter, needles per inch, number of feeders above are as a guidance
customized size also acceptable
……………………………………………………………………………………………………………………………………………………….
• Cylinder import Japan steel NO.S45CL
Cylinder part of this model has 4 cam tracks
……………………………………………………………………………………………………………………………………………………….
• Taiwan TECO brand motor with Taiwan Delta brand or Japan Toshiba brand inverter control unit as options
……………………………………………………………………………………………………………………………………………………….
• Pulsonic 5.2 pressure oiler or Uniwave misty oiler or Like brand misty oiler as options
………………………………………………………………………………………………………………………………………………………
• Germany Memminger brand feeders or Italy LGL brand or China SUN brand as options
……………………………………………………………………………………………………………………………………………………...
• Fulong brand Aluminum Tube creel
……………………………………………………………………………………………………………………………………………………....
• Speed of machine depend on yarn used, knitting condition, gauge etc. so please select proper speed for machine base on different yarn and knitting condition. We give a guide speed as normal as following:
GUIDE SPEED
DIAMETER | GAUGE | FEEDER | RPM |
30" | 12G-24G | 42F/36F | 14-18rpm |
34’’ | 48F/42F |
PACKAGING & SHIPPING
OE-TCJ | 34” DIAMETER |
N.W. APPROX | 2.0T |
G.W APPROX | 2.5T |
WOODEN BOX SIZE | 2.25mX2.23mX2.5m |
