INTRODUCTION

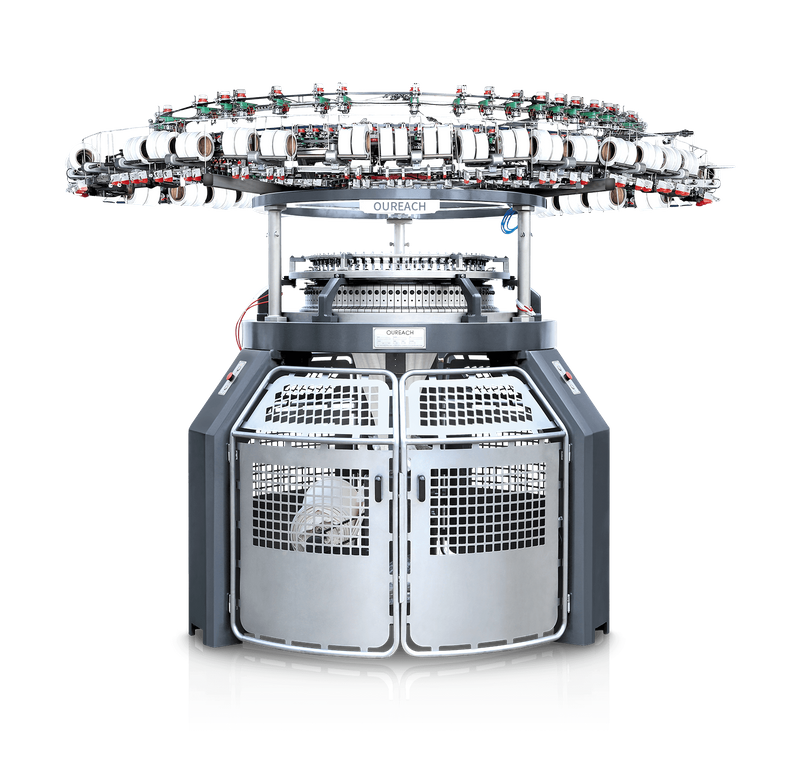

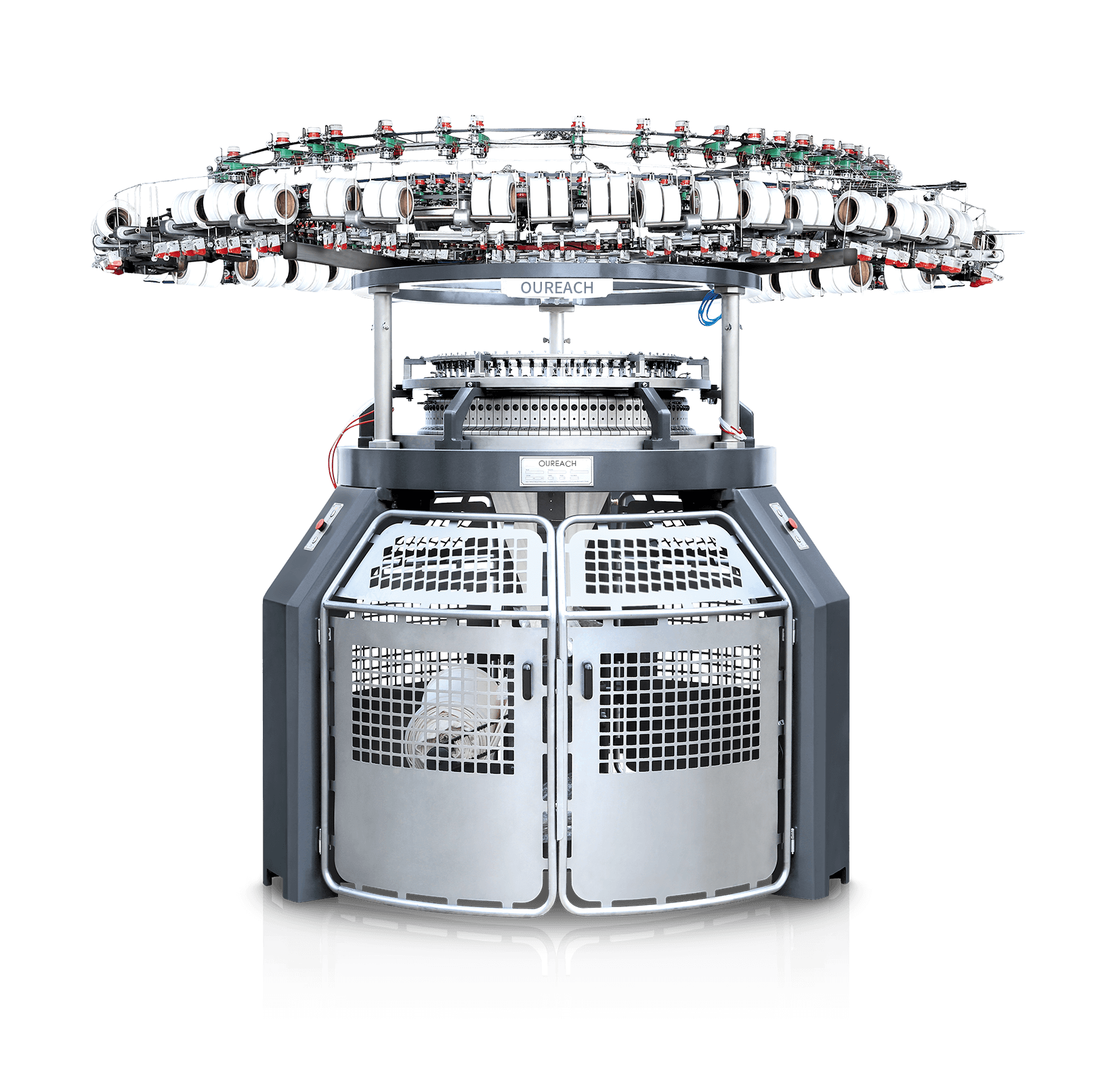

Terry Circular Knitting Machine
Latest design for terry machine. | |
More convenient for worker operation in yarn feeding system. | |
Offer different length loop sinker as options. | |
Offer more knit cam, tuck cam, miss cam for more terry structure as options. |
STANDARD SPECIFICATIONS
Model | Diameter | Gauge | Feeder | Loop sinker optional |
OE-TM | 18”-52” | 7G-28G | 36F-104F | 1.5mm-5.0mm |
OE-PM | 28F-84F |
………………………………………………………………………………………………………………………………………………………
• Cylinder diameter, needles per inch, number of feeders above are as a guidance
Customized size also acceptable
……………………………………………………………………………………………………………………………………………………….
• Cylinder import Japan steel NO.S45CL
Cylinder part of this model has 4 cam tracks
……………………………………………………………………………………………………………………………………………………….
• Taiwan TECO brand motor with Taiwan Delta brand or Japan Toshiba brand inverter control unit as options
……………………………………………………………………………………………………………………………………………………….
• Pulsonic 5.2 pressure oiler or Uniwave misty oiler or Like brand misty oiler as options
………………………………………………………………………………………………………………………………………………………
• Germany Memminger brand feeders or Italy LGL brand or China SUN brand as options
……………………………………………………………………………………………………………………………………………………...
• Fulong brand Aluminum Tube creel
……………………………………………………………………………………………………………………………………………………....
• Speed of machine depend on yarn used, knitting condition, gauge etc. so please select proper speed for machine base on different yarn and knitting condition. We give a guide speed as normal as following:
GUIDE SPEED
DIAMETER | GAUGE | FEEDER | RPM |
24” | 18G-22G | 48F/40F | 15-25rpm |
30” | 60F/48F | ||
34” | 68F/56F |
PACKAGING & SHIP
OE-TM/PM | 34” DIAMETER |
N.W. APPROX | 2.0T |
G.W APPROX | 2.5T |
WOODEN BOX SIZE | 2.25mX2.23mX2.25m |
