INTRODUCTION

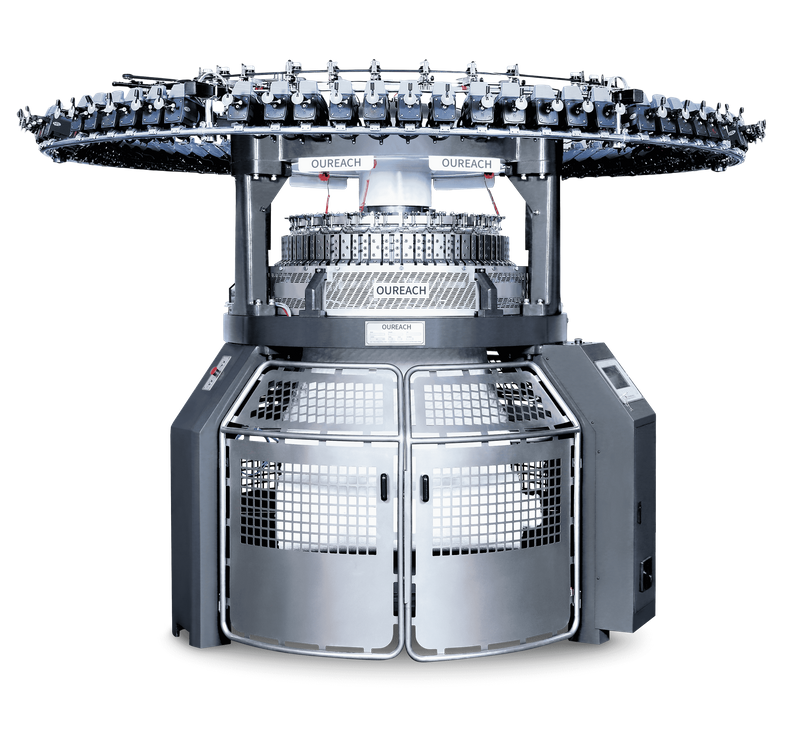

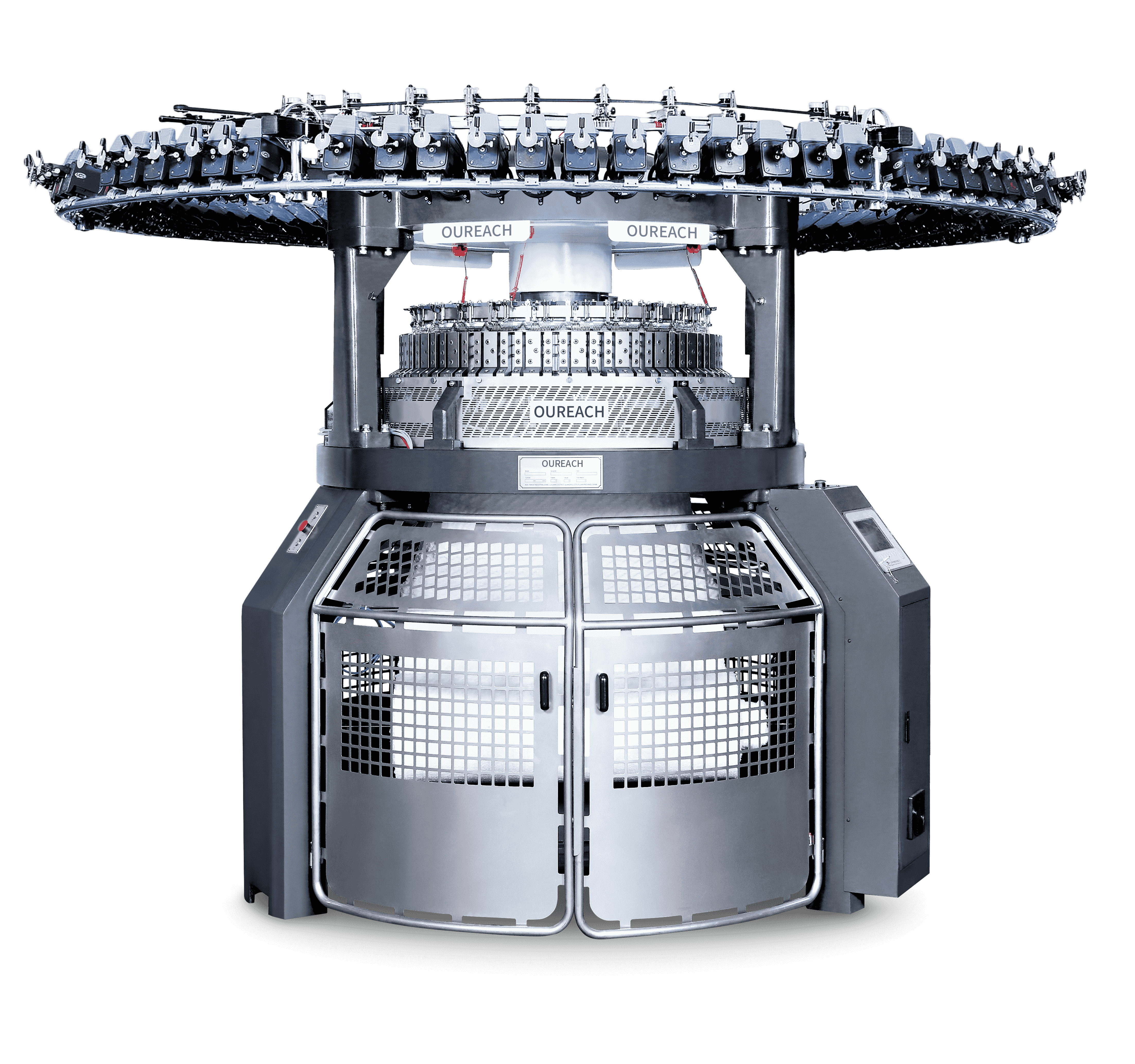

High Pile Jacquard Machine
Dial cutter or cylinder cutter two different types. | |
Jacquard system 2 or 3 way function as options. | |
Jacquard system can be on dial or cylinder part. | |
Provide different fur height as an option. |
STANDARD SPECIFICATIONS
Model | Diameter | Gauge | Feeder | Loop sinker optional |
OE-HPJ | 26”-48” | 12G-24G | 16F-27F | 5-20mm |
………………………………………………………………………………………………………………………………………………………
• Cylinder diameter, needles per inch, number of feeders above are as a guidance
customized size also acceptable
……………………………………………………………………………………………………………………………………………………….
• Cylinder import Japan steel NO.S45CL
Cylinder part of this model has 4 cam tracks
……………………………………………………………………………………………………………………………………………………….
• Taiwan TECO brand motor with Taiwan Delta brand or Japan Toshiba brand inverter control unit as options
……………………………………………………………………………………………………………………………………………………….
• Pulsonic 5.2 pressure oiler or Uniwave misty oiler or Like brand misty oiler as options
………………………………………………………………………………………………………………………………………………………
• Germany Memminger brand feeders or Italy LGL brand or China SUN brand as options
……………………………………………………………………………………………………………………………………………………...
• Fulong brand Aluminum Tube creel
……………………………………………………………………………………………………………………………………………………....
• Speed of machine depend on yarn used, knitting condition, gauge etc. so please select proper speed for machine base on different yarn and knitting condition. We give a guide speed as normal as following:
GUIDE SPEED
DIAMETER | GAUGE | FEEDER | RPM |
24’’ | 22G | 16F | 15-18rpm |
PACKAGING & SHIP
OE-HPJ | 38” DIAMETER |
N.W. APPROX | 3.5T |
G.W APPROX | 4.0T |
WOODEN BOX SIZE | 2.7mX2.3mX2.5m |
