INTRODUCTION

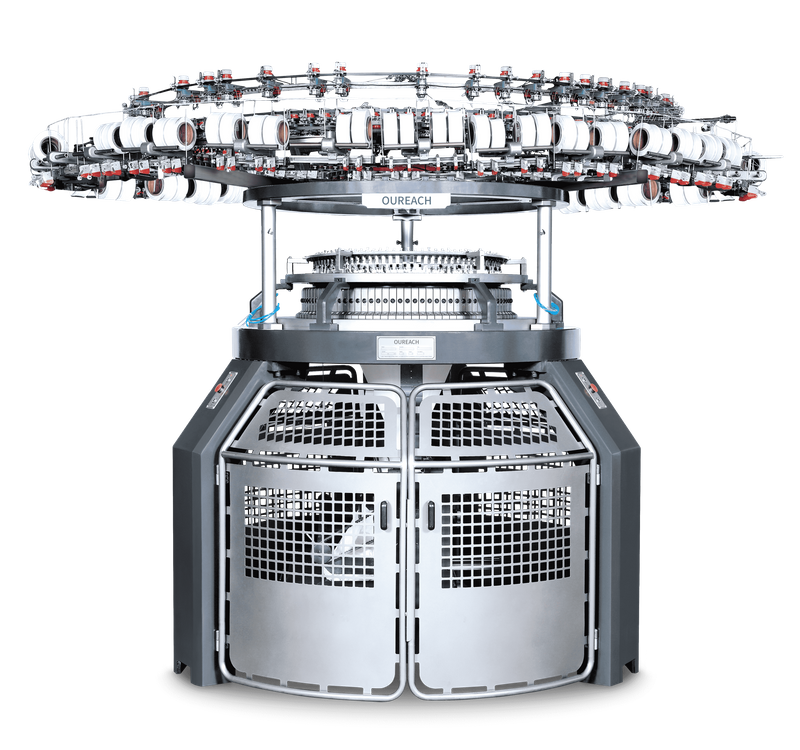

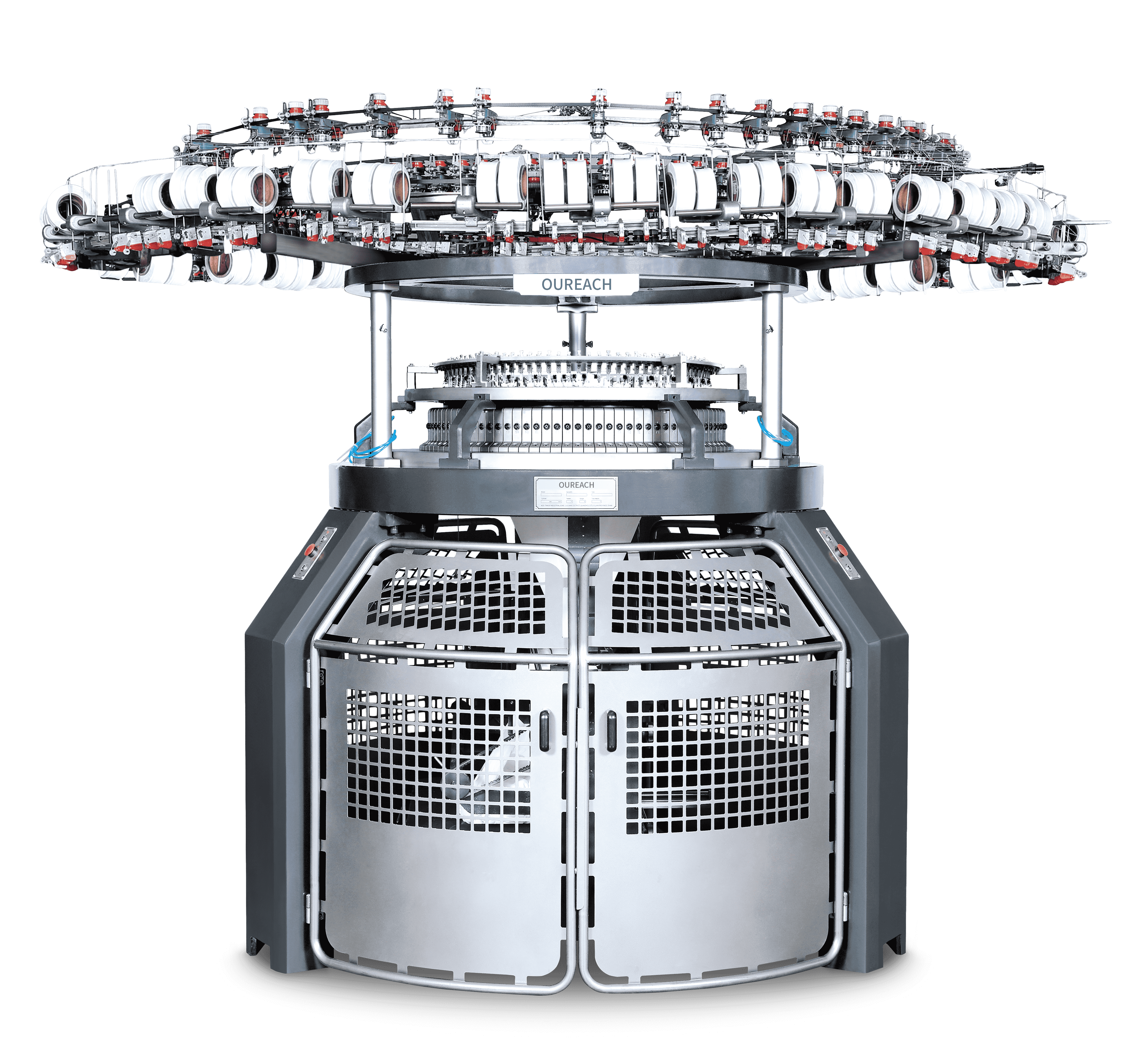

Three-Thread Fleece Circular Knitting Machine
| High Quality Fleece fabrics on highly productive quantity. | |
| 3 Feeders per inch. | |
| 4 track cams in cylinder. | |
| Tie-in yarn, ground yarn, lay-in yarn knitting perfectly. | |
| This machine can be settle to different structure fabrics use for underwear, sports -wear, baby wear. |
STANDARD SPECIFICATIONS
Model | Diameter | Gauge | Feeder | Applicable Yarn Material |
OE-FL | 30” | 8G-28G | 90F | Cotton, Chemical fiber, blended yarn, silk and wool etc |
32” | 96F | |||
34” | 102F | |||
36” | 108F |
………………………………………………………………………………………………………………………………………………………
• Cylinder diameter, needles per inch, number of feeders above are as a guidance.
Customized size also acceptable.
……………………………………………………………………………………………………………………………………………………….
• Cylinder import Japan steel NO.S45CL.
Cylinder part of this model has 4 cam tracks
……………………………………………………………………………………………………………………………………………………….
• Taiwan TECO brand motor with Taiwan Delta brand or Japan Toshiba brand inverter control unit as options
……………………………………………………………………………………………………………………………………………………….
• Pulsonic 5.2 pressure oiler or Uniwave misty oiler or Like brand misty oiler as options
………………………………………………………………………………………………………………………………………………………
• Germany Memminger brand feeders or Italy LGL brand or China SUN brand as options
……………………………………………………………………………………………………………………………………………………...
• Fulong brand Aluminum Tube creel
……………………………………………………………………………………………………………………………………………………....
• Speed of machine depend on yarn used, knitting condition, gauge etc. so please select proper speed for machine base on different yarn and knitting condition. We give a guide speed as normal as following:
DIAMETER | GAUGE | FEEDER | RPM |
24” | 14-24G | 72F | 20-30rpm |
26” | 78F | ||
30” | 90F | ||
34” | 102F |
REFERENCE OF YARN MATERIAL / GSM/ PRODUCTION/ WIDTH
DIAMETER | GAUGE | RPM | YARN MATERIAL | GSM | WIDTH |
32” | 20G | 23 | Tie-in Yarn 75D Ground Yarn 30s Lay-in Yarn 12s | 265-320g | 75-83cm |
34” | 22 | 81-88cm | |||
32” | 26 | Tie-in Yarn 30s Ground Yarn 30s Lay-in Yarn 12s | 200-290g | 75-83cm | |
34” | 24 | 240-290g | 77-87cm |
PACKAGING & SHIPPING
OE-FL | 34” DIAMETER |
N.W. APPROX | 2.0T |
G.W APPROX | 2.5T |
WOODEN BOX SIZE | 2.25m X 2.23m X 2.25m |
