INSTRUCTIONS

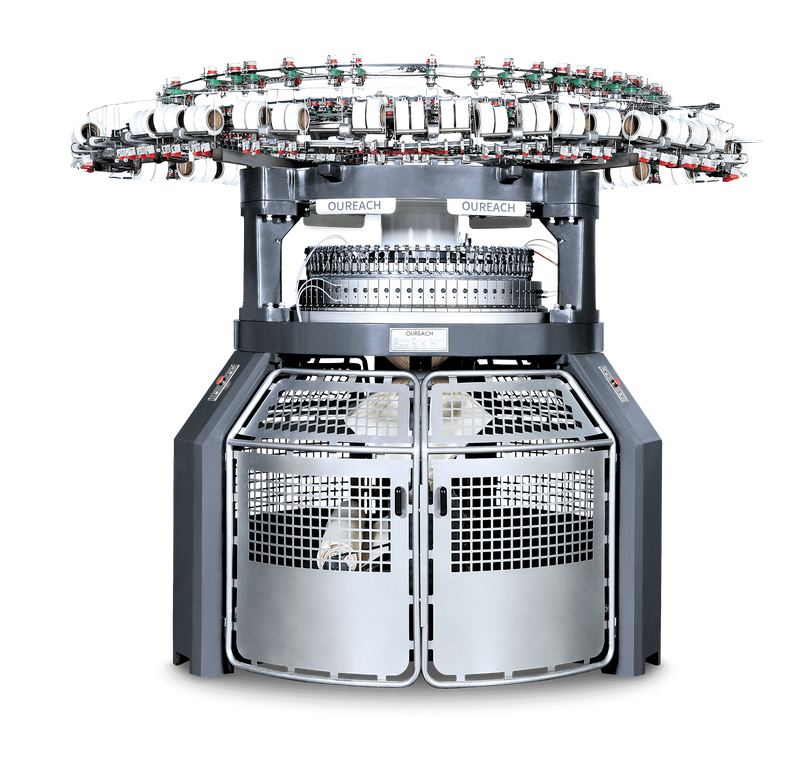

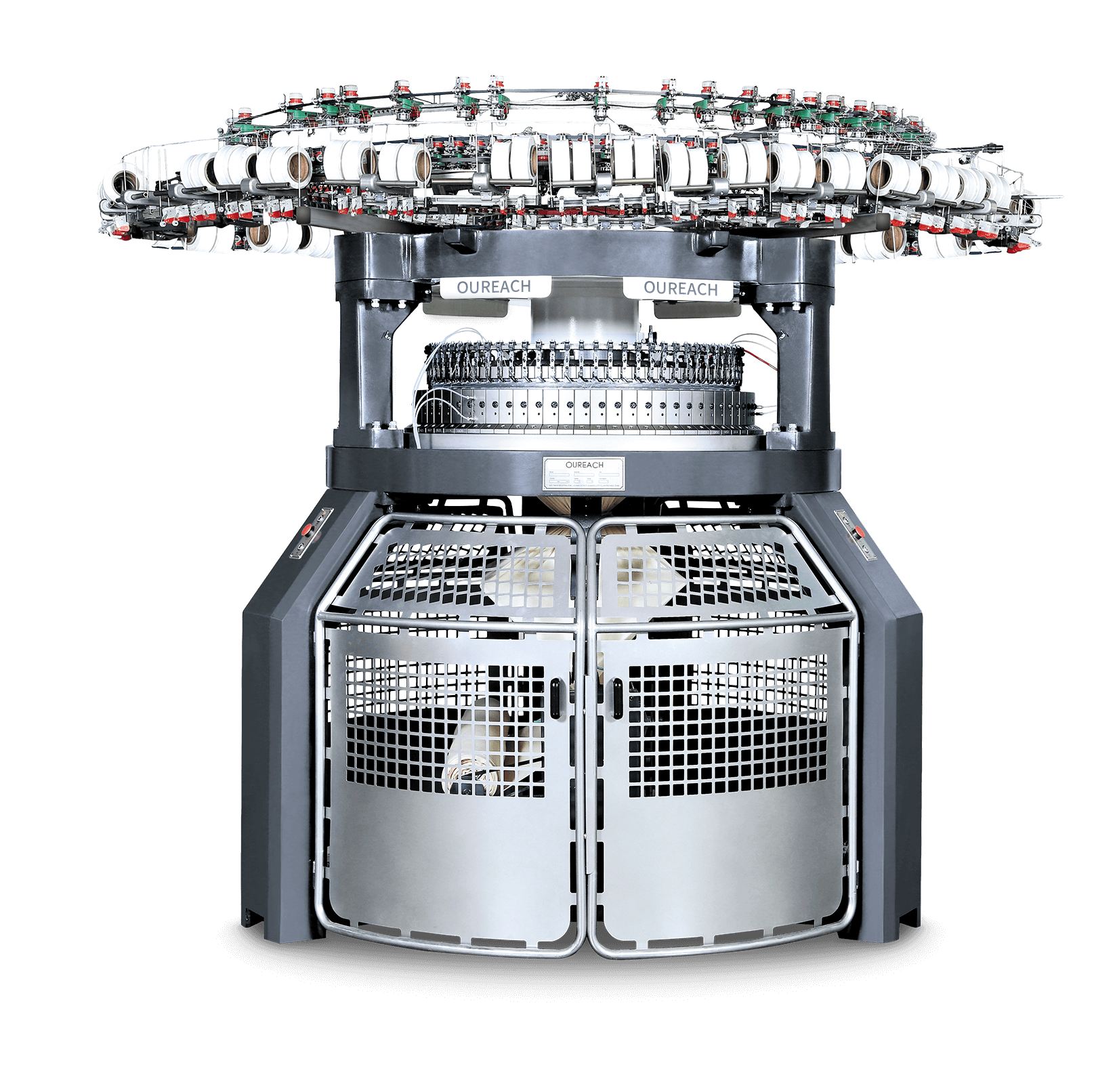

Rib Double Jersey Circular Knitting Machine
| Machine can make collars and cuffs. | |
| 1 or 2 tracks dial cam as options. | |
| 1 or 2 or 4 tracks cylinder cam as options. | |
| Mini jacquard pattern can be used in this machine under adjust cam track. | |
| Using spandex to be strength fabric for sport wear. |
STANDARD SPECIFICATIONS
Model | Diameter | Gauge | Feeder | Applicable Yarn Material |
OE-DR | 30” | 8G-24G | 54F | Cotton, Chemical fiber, Blended yarn, Silk and wool etc |
60F | ||||
34” | 60F | |||
68F |
………………………………………………………………………………………………………………………………………………………
• Cylinder diameter, needles per inch, number of feeders above are as a guidance
Customized size also acceptable
……………………………………………………………………………………………………………………………………………………….
• Cylinder import Japan steel NO.S45CL
Cylinder part of this model has 1 OR 2 OR 4 cam tracks
……………………………………………………………………………………………………………………………………………………….
• Taiwan TECO brand motor with Taiwan Delta brand or Japan Toshiba brand inverter control unit as options
……………………………………………………………………………………………………………………………………………………….
• Pulsonic 5.2 pressure oiler or Uniwave misty oiler or Like brand misty oiler as options
………………………………………………………………………………………………………………………………………………………
• Germany Memminger brand feeders or Italy LGL brand or China SUN brand as options
……………………………………………………………………………………………………………………………………………………...
• Fulong brand Aluminum Tube creel
• Speed of machine depend on yarn used, knitting condition, gauge etc. so please select proper speed for machine base on different yarn and knitting condition. We give a guide speed as normal as following:
GUIDE SPEED
DIAMETER | GAUGE | FEEDER | RPM |
30” | 8G-24G | 54F/60F | 15-30rpm |
OE-DJ | 34” DIAMETER |
N.W. APPROX | 2.5T |
G.W APPROX | 3.0T |
WOODEN BOX SIZE | 2.25m X 2.23m X 2.25m |
