INTRODUCTION

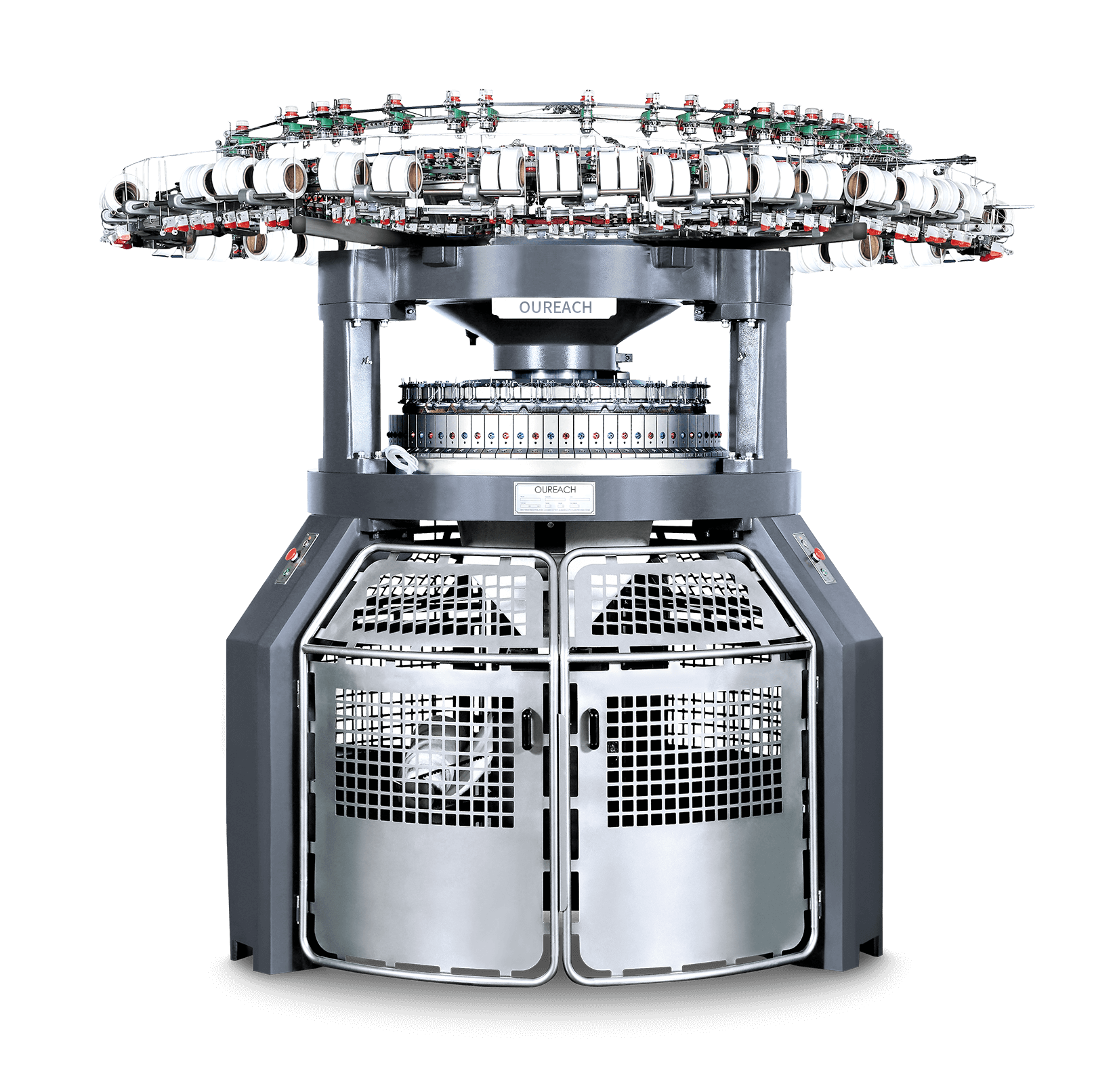

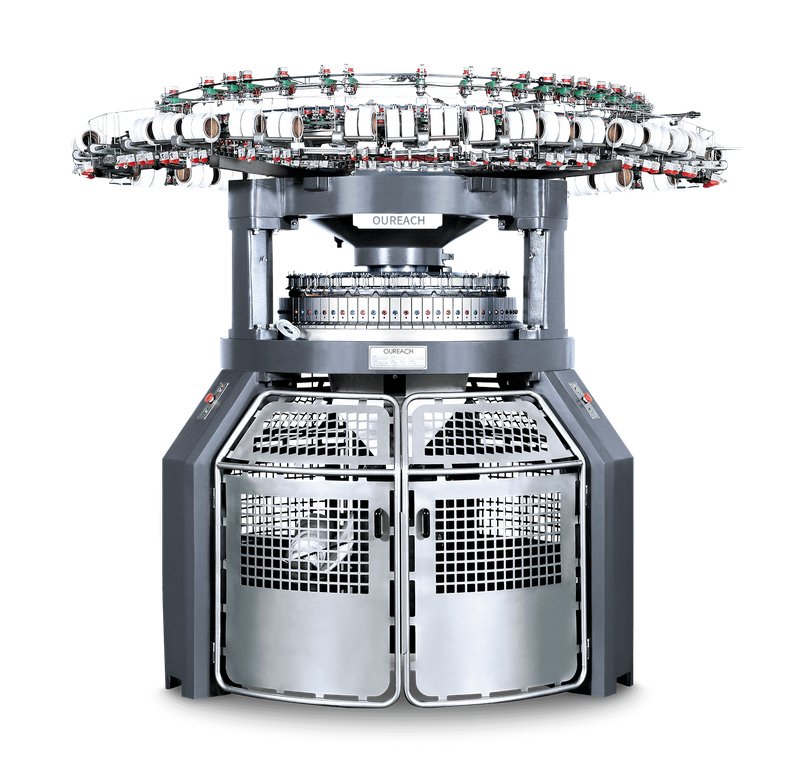

High Pile Cutting Machine
Dial cutter or cylinder cutter two different types. | |
Have the trend to instead of the warp knitting machine. | |
Provide different fur height as an option. | |
Cam system can be conversion to interlock. |
STANDARD SPECIFICATIONS
Model | Diameter | Gauge | Feeder | Remark |
OE-HMC | 18”-48” | 16G-26G | 12F-34F | Cylinder cutter type. Short loop usual use cutter and hook separate, long loop usual use cutter&hook in one. |
| OE-HMD | 16G-22G | 30F-72F | Dial cutter type. With high density but short loop limit. Common size 38"22G60F. |
………………………………………………………………………………………………………………………………………………………
• Cylinder diameter, needles per inch, number of feeders above are as a guidance
Customized size also acceptable
……………………………………………………………………………………………………………………………………………………….
• Cylinder import Japan steel NO.S45CL
Cylinder part of this model has 4 cam tracks
……………………………………………………………………………………………………………………………………………………….
• Taiwan TECO brand motor with Taiwan Delta brand or Japan Toshiba brand inverter control unit as options
……………………………………………………………………………………………………………………………………………………….
• Pulsonic 5.2 pressure oiler or Uniwave misty oiler or Like brand misty oiler as options
………………………………………………………………………………………………………………………………………………………
• Germany Memminger brand feeders or Italy LGL brand or China SUN brand as options
……………………………………………………………………………………………………………………………………………………...
• Fulong brand Aluminum Tube creel
……………………………………………………………………………………………………………………………………………………....
• Speed of machine depend on yarn used, knitting condition, gauge etc. so please select proper speed for machine base on different yarn and knitting condition. We give a guide speed as normal as following:
PRODUCTION DETAIL: 38dia as example
Gray Fabric Width | Finish Fabric Width | Raw Material and GSM | Production Quantity |
220cm-230cm | 150cm-220cm | 100D ground yarn+150D fur yarn, GSM less than 350g/m 150D ground yarn+150D fur yarn, GSM more than 350g/m | 350kg/24hours-400kg/24hours |
PACKAGING & SHIP
OE-HM | 34” DIAMETER |
N.W. APPROX | 2.5T |
G.W APPROX | 3.0T |
WOODEN BOX SIZE | 2.25mX2.23mX2.25m |
